Tree component

Tree is designed for product categories, organization charts, folders, regions, and other hierarchical data. You can maintain a small tree directly in the page structure, or load roots and children from an API. The same component also supports search, node-level actions, and drag-and-drop reordering.

This guide covers how to:

• Build a small static navigation tree
• Load a complete hierarchy or fetch children on demand
• Map API fields to the node title, value, leaf state, and secondary text
• Search locally or through a backend endpoint
• Use click, check, expand, load, and drop context
• Add a shared More menu and desktop context menu
• Persist a new hierarchy through onDrop
• Control the tree with reloadTree, expandAll, and collapseAll

1. Choose the right setup

Start with the way the hierarchy is maintained:

Scenario	Recommended setup	Read next
A short, stable list maintained by page authors	Static Tree Nodes	Static nodes, Refresh content when a node is selected
Data owned by a business system	Tree Data Source	Dynamic data source, Search
Add, edit, delete, or contextual commands	Dynamic source + Node Actions	Configure node actions
Reorder siblings or move branches	Dynamic source + onDrop	Drag and persist changes

The two Spark Sample pages below illustrate the static and dynamic approaches. You do not need access to the Sample application to reproduce them.

1.1 Tree: static product categories

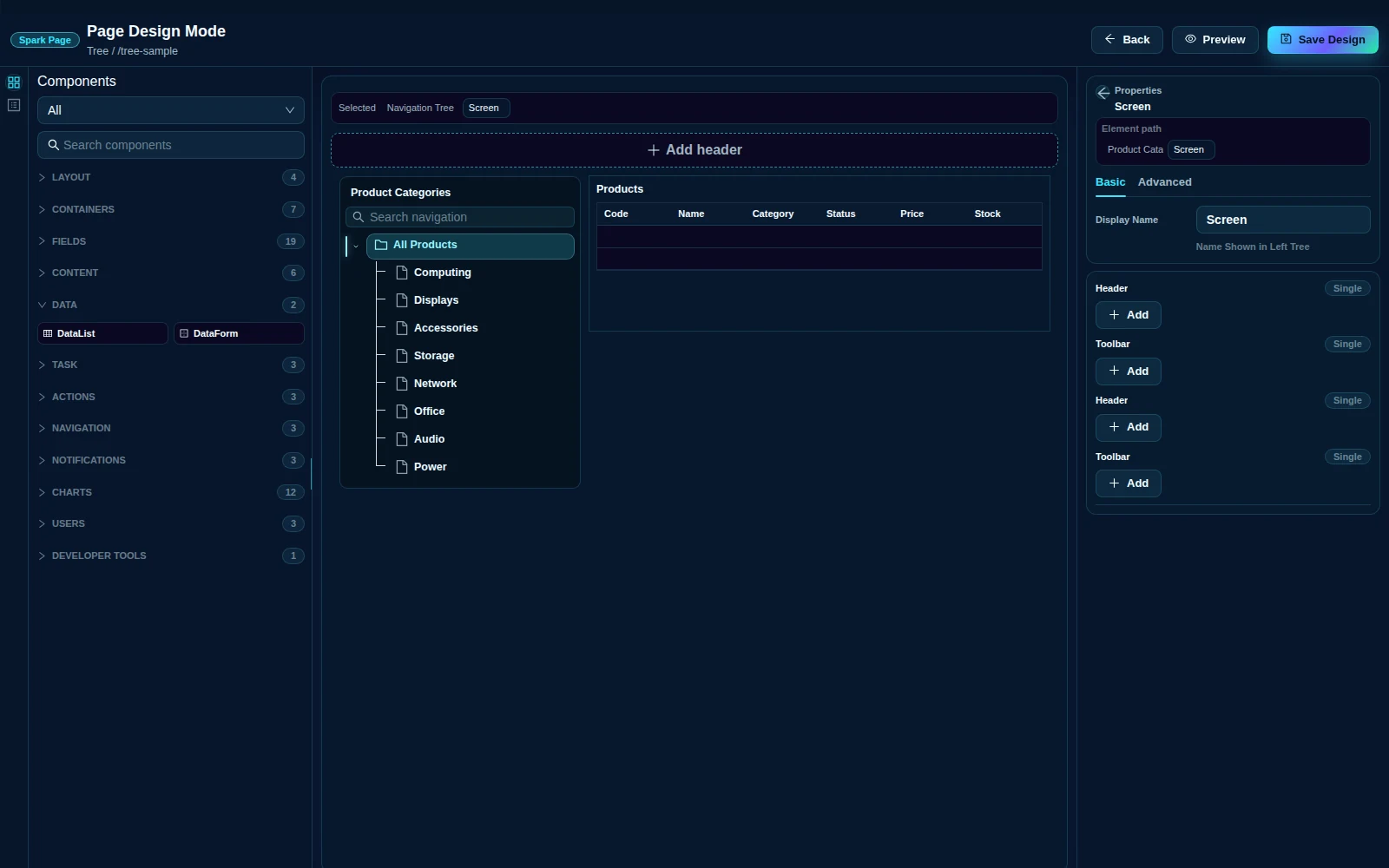

The Tree page keeps a small product taxonomy in the page structure. Selecting a node writes its category to Page Context, then reloads the ProTable on the right.

Screen
├── Navigation Tree
│   └── Tree
│       └── Tree Nodes
│           ├── All Products (ALL)
│           ├── Computing (COMPUTING)
│           ├── Displays (DISPLAY)
│           └── Accessories (ACCESSORY)
└── Panels
    └── ProTable

The important part is the order of the interaction chain:

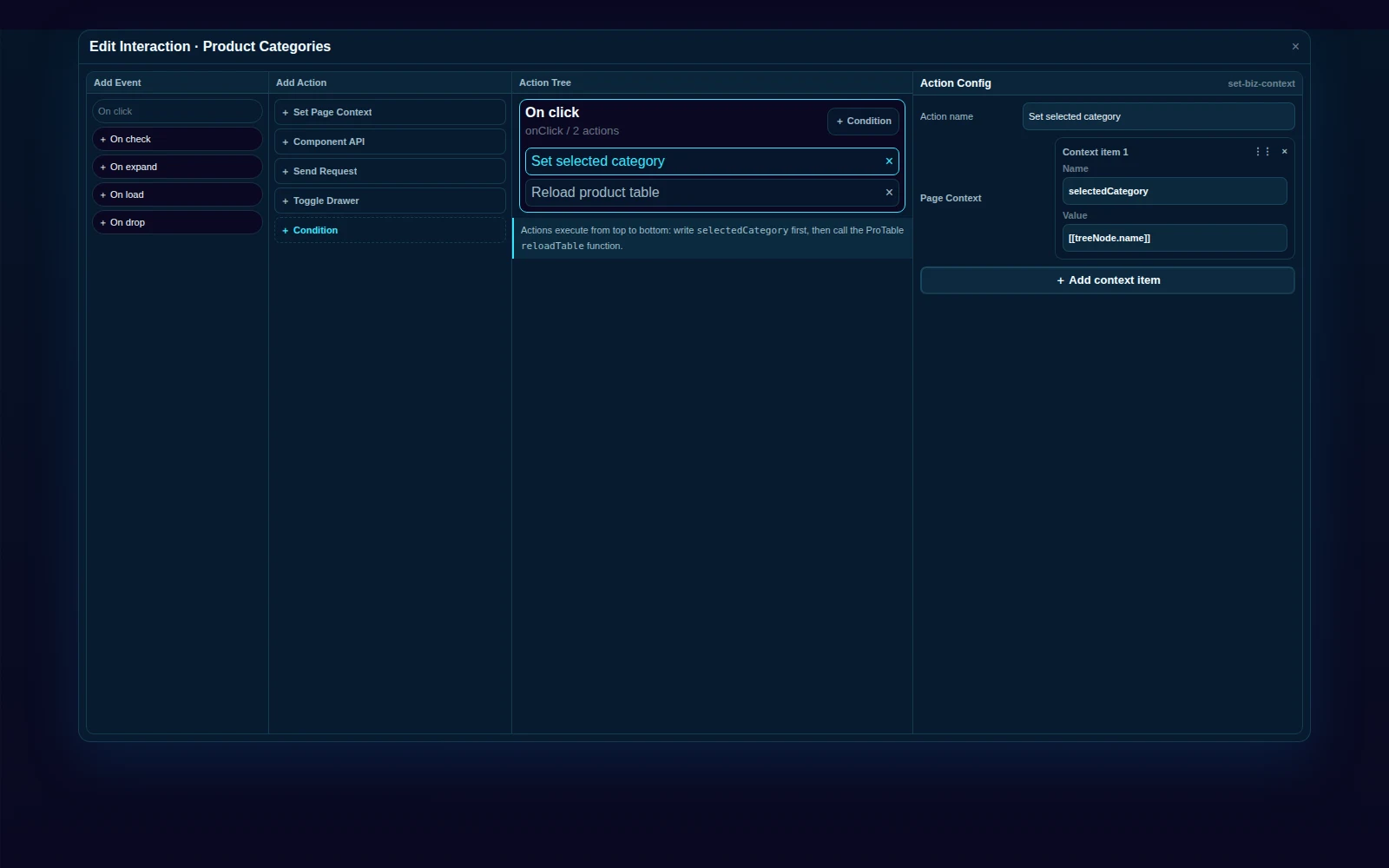

1. Store [[treeNode.name]] in selectedCategory with Set Page Context.
2. Call the ProTable reloadTable function with Component API.
3. Map selectedCategory to the category request parameter in the ProTable Query Context.

See Refresh content when a node is selected for the full editor setup.

1.2 Tree02: dynamic loading and hierarchy editing

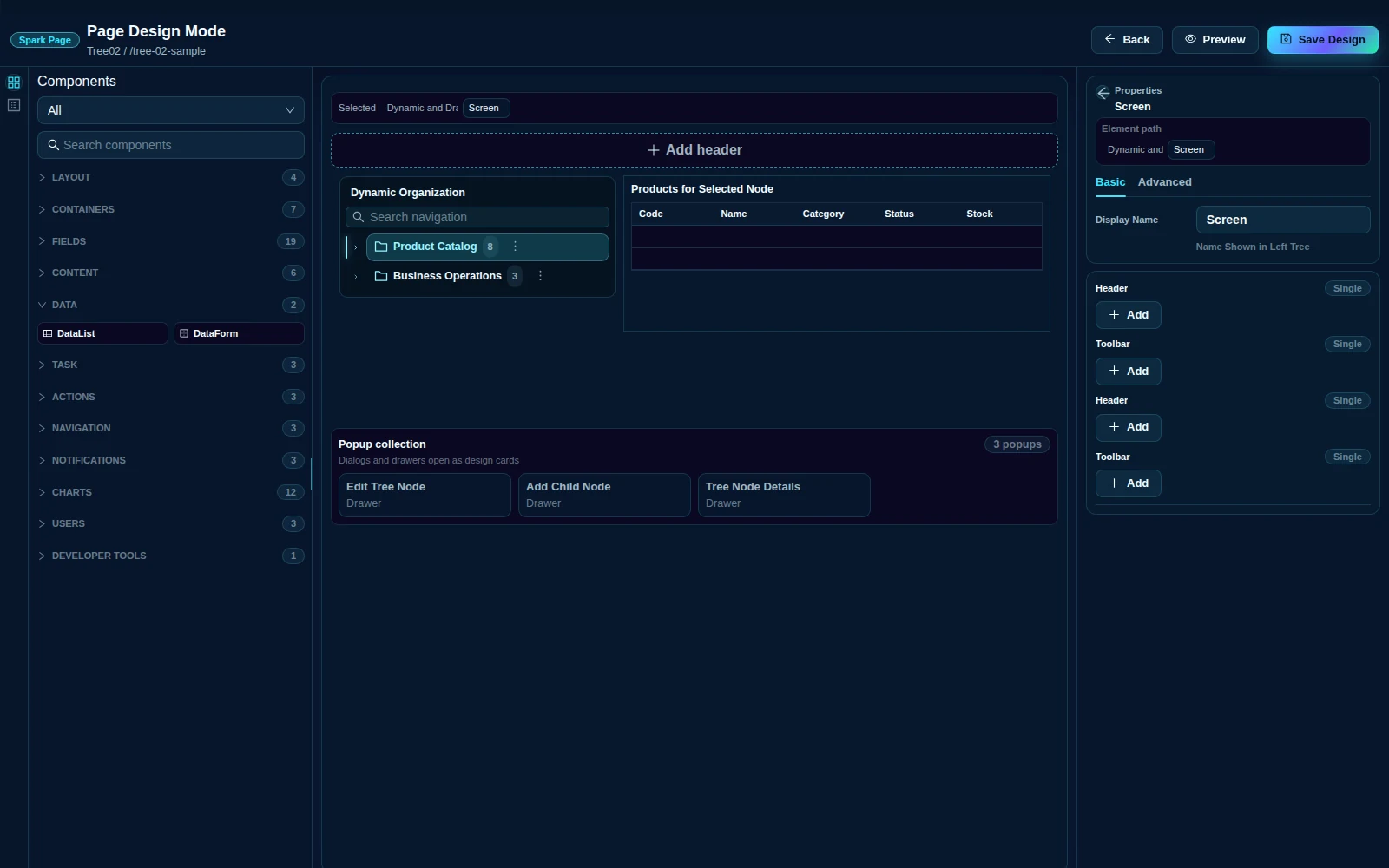

Tree02 combines a backend-powered Tree with a ProTable and node commands:

Capability	Sample behavior
Roots and children	Loads roots when the page opens, then requests direct children with parentId
Search	Sends the term to the server and keeps the ancestors of matching nodes
Detail panel	Writes id and category to Page Context before reloading the ProTable
Node commands	Uses the same Edit, Add Child, View Details, and Delete items for More and right-click
Drag-and-drop	Saves through onDrop; the visual move is rolled back if persistence fails

Build the example in stages: verify the root response first, add lazy loading and search next, then configure click behavior and node actions. Turn on dragging only after the read path is working. This makes failures much easier to isolate.

2. Add a Tree

1. Open the target page in Page Designer.
2. Select Screen in the page structure.
3. Add Tree under the Screen's Navigation Tree child area.
4. For static data, add entries under Tree Nodes.
5. For API-backed data, add Tree Data Source under Data Source.
6. Add ProTable, Form, or other content under Panels.

Navigation Tree is the dedicated left-hand region of Screen. Panels and Grids automatically form the content region, so there is no need to recreate this layout with a Grid.

3. Configure the Tree

Property	Example	Purpose
Title	Dynamic Organization	Optional heading above the tree
Width	320px	Desktop width in pixels; the tree becomes a full row on narrow screens
Show Search	On	Displays the search field
Show Icon	On	Displays folder and leaf icons
Selectable	On	Allows selection and fires onClick
Show Connecting Lines	On	Shows the parent-child guides
Show Checkbox	Off	Enables multi-selection when needed
Strict Mode	Off	Stops parent and child checkbox states from affecting each other
Node Draggable	On	Allows runtime reordering
Drag Scope	SAME_PARENT	Restricts moves to siblings or allows cross-branch movement
Node Action Trigger	MORE_BUTTON_AND_CONTEXT_MENU	Keeps the More button and enables desktop right-click

SAME_PARENT allows only sibling reordering. ANY_LEVEL also allows moving a node to another branch; Tree still prevents a parent from being moved inside one of its descendants. Keep Node Draggable off when the tree is navigation-only.

4. Static nodes

Each static Tree Node needs at least:

Property	Example	Purpose
Name	ACCESSORY	Stable internal value used in context or API parameters
Title	Accessories	User-facing label

Keep Name stable across languages. Localize Title instead.

A node with Children is treated as a folder; a node without Children is a leaf. A dynamic Tree may still include a few static entries for design-time fallback. Once a dynamic request succeeds, its response becomes authoritative.

5. Dynamic data source

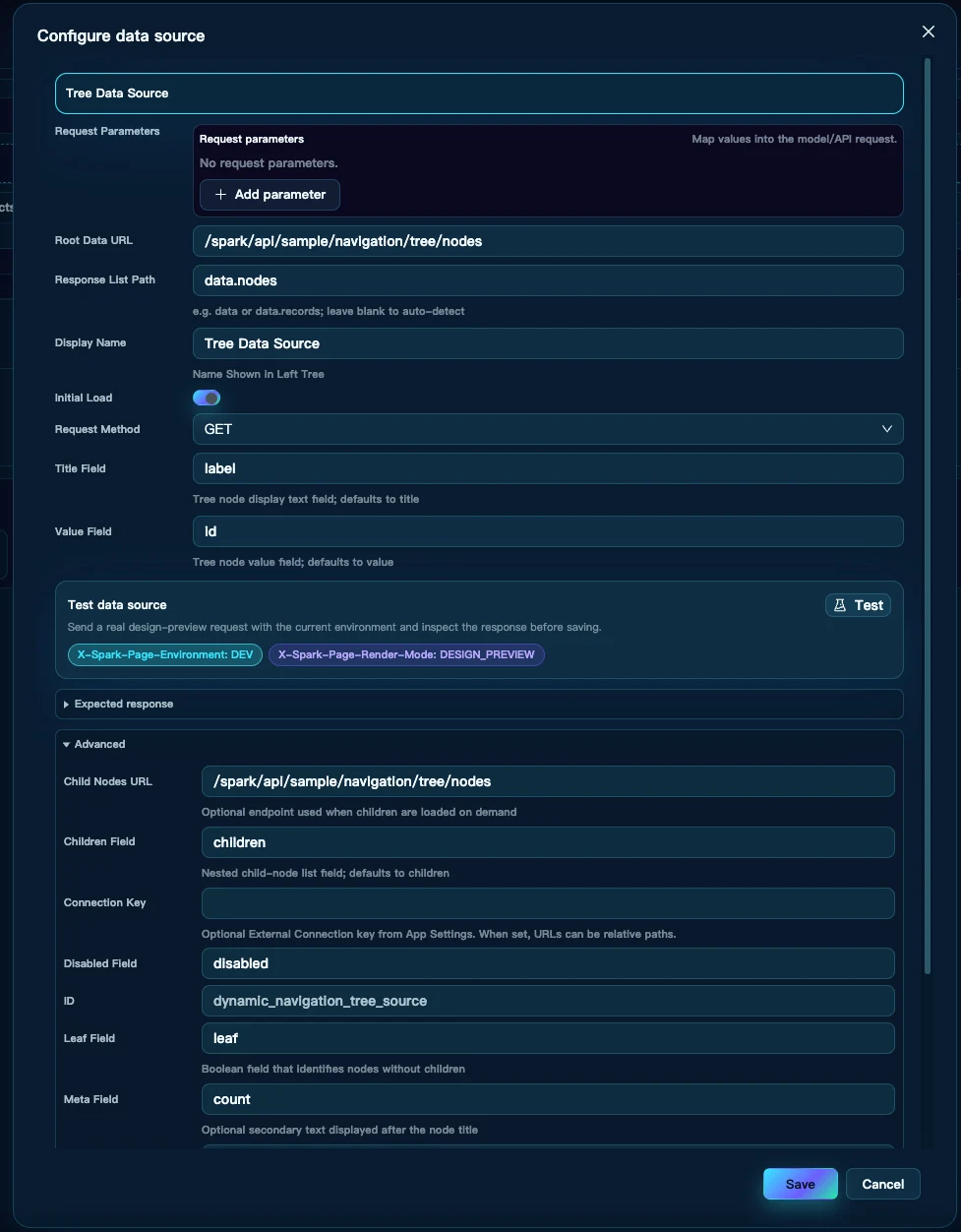

Add Tree Data Source under the Tree's Data Source area. Configure the root request and mappings before adding lazy loading or remote search:

1. Open Data Source and choose Add data source, or edit the existing source.
2. Select Tree Data Source.
3. Fill in the basic properties below.
4. Select Test and confirm that the response produces nodes.
5. Open Advanced and add child-loading and search settings.
6. Test the root request again, then save.

Property	Tree02 value	Purpose
Root Data URL	/spark/api/sample/navigation/tree/nodes	Returns roots or a complete tree
Request Method	GET	GET or POST
Request Parameters	As needed	May reference Page Context, components, and browser values
Response List Path	data.nodes	Path to the node array; leave blank to detect common shapes
Title Field	label	User-facing node text
Value Field	id	Stable, unique node value
Children Field	children	Nested child array
Leaf Field	leaf	Boolean indicating that a node has no children
Disabled Field	disabled	Boolean indicating that a node cannot be selected
Meta Field	count	Secondary text, such as the child count
Initial Load	On	Requests roots when the page opens

Root Data URL may be an application-relative path, an absolute URL, or a relative path resolved through Connection Key.

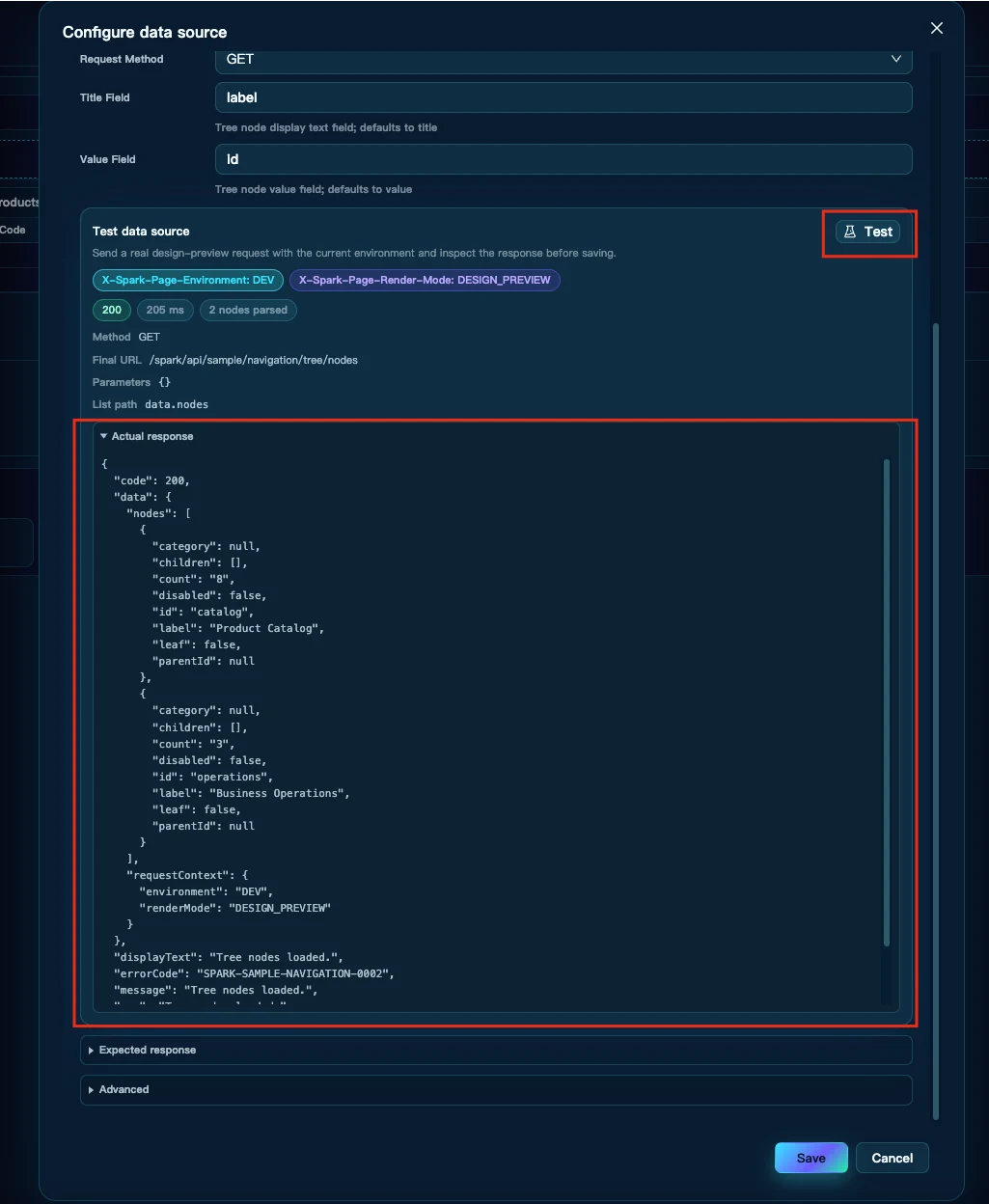

5.1 Test the request and inspect the response

Test calls the configured Root Data URL. Spark automatically adds the current environment and design-preview mode. A test from a DEV page carries:

X-Spark-Page-Environment: DEV
X-Spark-Page-Render-Mode: DESIGN_PREVIEW

The result panel shows the HTTP status, duration, final URL, business parameters, Response List Path, masked JSON response, and parsed node count.

If the request returns 200 with zero parsed nodes, check Response List Path first. If nodes are found but labels are blank, check Title Field. For a browser-level failure, verify that CORS allows both X-Spark-Page-* headers.

Test, design preview, and runtime use the same request builder and response parser. Do not add the environment headers manually in Data Source. The full contract is described in Page request context and backend debugging.

The backend resolves the standard headers once and passes the resulting context to the service:

@GetMapping("/nodes")
public ApiResult<NavigationTreeDataResult> nodes(
        @RequestParam(required = false) String parentId,
        @RequestParam(required = false) String query,
        @RequestHeader(value = "Accept-Language", required = false) String language,
        @RequestHeader(value = SparkPageRequestHeaders.ENVIRONMENT,
                required = false) String environment,
        @RequestHeader(value = SparkPageRequestHeaders.RENDER_MODE,
                required = false) String renderMode) {
    Locale locale = SparkApiResultHelper.resolveLocale(language);
    SparkPageRequestContext requestContext =
            SparkPageRequestHeaders.resolve(environment, renderMode);
    NavigationTreeDataResult result = new NavigationTreeDataResult(
            treeService.query(parentId, query, requestContext), requestContext);
    return SparkApiResultHelper.success(
            locale, result, "SPARK-SAMPLE-NAVIGATION-0002");
}

The service works with shared enums rather than parsing header strings again:

private boolean isDevelopmentPreview(
        SparkPageRequestContext requestContext) {
    return requestContext != null
            && requestContext.getEnvironment() == SparkPageEnvironment.DEV
            && requestContext.getRenderMode()
                == SparkPageRenderMode.DESIGN_PREVIEW;
}

Tree02 returns a deterministic preview hierarchy for DEV + DESIGN_PREVIEW; runtime requests use the data for their target environment. The context headers are routing and debugging signals, not a substitute for authentication, authorization, or tenant isolation.

5.2 Return a complete hierarchy

When one request returns the entire hierarchy, place children in the configured Children Field:

{
  "success": true,
  "data": {
    "nodes": [
      {
        "id": "catalog",
        "label": "Product Catalog",
        "count": "2",
        "leaf": false,
        "children": [
          { "id": "computing", "label": "Computing", "leaf": true, "children": [] },
          { "id": "display", "label": "Displays", "leaf": true, "children": [] }
        ]
      }
    ]
  }
}

Child Nodes URL can remain blank in this mode.

5.3 Load children on demand

For large or deep hierarchies, configure:

Property	Example	Purpose
Child Nodes URL	/spark/api/sample/navigation/tree/nodes	Called when a folder is expanded; it may match Root Data URL
Parent Parameter	parentId	Receives the current folder's Value

GET /spark/api/sample/navigation/tree/nodes
GET /spark/api/sample/navigation/tree/nodes?parentId=catalog

With lazy loading, Leaf Field must clearly identify nodes with no children. Otherwise Tree cannot know whether to display the expansion control.

6. Search

By default, search filters only nodes already loaded in the browser and does not change the selection.

For branches that may not have been loaded, enable Server-side Search:

Property	Example	Purpose
Search URL	/spark/api/sample/navigation/tree/nodes	Optional; falls back to Root Data URL
Search Parameter	query	Parameter carrying the search term

Typing tier 2 produces:

GET /spark/api/sample/navigation/tree/nodes?query=tier%202

Return each match with its ancestors. A leaf without its path gives users no useful sense of location. Clearing the query reloads the roots.

7. Event context

Tree publishes event context before running the configured interaction.

7.1 Node click: onClick

treeNode.key
treeNode.value
treeNode.name
treeNode.title
treeNode.parentKey
treeNode.parentValue
treeNode.depth
treeNode.isLeaf
treeNode.data
treeNode.extData

For dynamic nodes, the original API record is available as treeNode.data:

[[treeNode.value]]
[[treeNode.data.category]]

Static-node extension fields remain available under treeNode.extData.

7.2 Checkbox change: onCheck

treeCheckedKeys
treeCheckedNodes

7.3 Expand or collapse: onExpand

treeExpand.expanded
treeExpand.node
treeExpand.expandedKeys

7.4 Data loaded: onLoad

treeLoad.parentNode
treeLoad.query
treeLoad.nodeCount

parentNode is empty for a root load and identifies the expanded folder for a lazy child request.

8. Configure node actions

Node Actions are defined once on Tree and apply to static nodes, dynamic roots, and lazy-loaded children. Visibility and disabled conditions can still vary by node.

8.1 Add actions

1. Select Tree.
2. Add Tree Node Action under Node Actions.
3. Enter Title and choose an icon in the shared Icon picker.
4. Use DANGER for destructive commands.
5. Enable Divider Before when the item starts a new group.
6. Select the action and configure its onClick interaction.

The child-element order is the menu order. A divider is never rendered above the first visible item.

8.2 More and right-click

Right-click is not a separate onContextMenu interaction. Both entry points use the same Node Actions:

• MORE_BUTTON keeps only the visible More button.
• MORE_BUTTON_AND_CONTEXT_MENU also opens the same menu on desktop right-click.

Tree02 uses:

Tree
└── Node Actions
    ├── Edit
    ├── Add Child
    ├── View Details
    └── Delete

Action	Appearance and condition	Interaction chain
Edit	edit, DEFAULT	Fill the edit form from treeNode, then open its Drawer
Add Child	link, DEFAULT	Set the parent from treeNode.value, clear the name, then open the create Drawer
View Details	view, DEFAULT	Fill a read-only form and open the detail Drawer
Delete	delete, DANGER, Divider Before; hide when ![[treeNode.isLeaf]]	Reminder, delete request, then reloadTree

Keep action interactions on the Tree Node Action itself, not on the Tree's onClick.

Edit sends PUT /spark/api/sample/navigation/tree/nodes/[[treeNode.value]]; Add Child sends POST /spark/api/sample/navigation/tree/nodes; Delete sends:

DELETE /spark/api/sample/navigation/tree/nodes/[[treeNode.value]]

Only reload after a successful request. The backend must enforce permissions and delete rules independently; hiding a command is not a security boundary.

8.3 Trigger behavior and keyboard access

More and context-menu triggers do not bubble to selection, checking, expansion, or dragging. Right-click suppresses the browser menu only when the current node has at least one visible action. Touch devices always use More rather than long-press.

Keyboard users can press Enter or Space on More, or Menu / Shift+F10 on a node. Arrow keys move through the menu; Enter or Space runs an item; Escape closes the menu and restores focus.

8.4 Show or disable actions by node

Advanced exposes:

Property	Effect	Example
Hide This Action	Hides the item when true	[[treeNode.isLeaf]]
Disable This Action	Leaves the item visible but unavailable	[[treeNode.data.locked]]

Expressions may use !, &&, ||, and common comparisons. An invalid Hide expression fails closed by hiding the item; an invalid Disable expression keeps it disabled. Page Designer also reports a configuration diagnostic.

8.5 Action context

Opening a menu writes the target to treeNode and selectedTreeNode without firing Tree onClick. Choosing an item also publishes:

treeAction.id
treeAction.elementId
treeAction.title
treeAction.tone

Design preview can show the menu and conditions, but it does not run the action chain. Test Drawer, Modal, Reminder, and request behavior after saving the page.

9. Drag and persist changes

Enable Node Draggable to move a node before, inside, or after another node. After the visual move, Tree fires onDrop and exposes:

treeDrop.dragNode
treeDrop.dropNode
treeDrop.position
treeDrop.oldParentKey
treeDrop.newParentKey
treeDrop.oldIndex
treeDrop.newIndex
treeDrop.treeData

treeDrop.position is BEFORE, INSIDE, or AFTER. The move initially affects only the current page. To persist it, add Send Request to onDrop:

POST /spark/api/sample/navigation/tree/reorder

Parameter	Value
dragId	[[treeDrop.dragNode.key]]
dropId	[[treeDrop.dropNode.key]]
position	[[treeDrop.position]]

If the request fails or is interrupted, Tree restores the previous structure. The backend must still validate both nodes, the new parent, cycles, permissions, and concurrent changes.

10. Refresh content when a node is selected

Tree publishes the current node; it does not decide how another component should query data. Write the selection to Page Context first, then call the target component.

10.1 Static Tree

For the static product-category example:

1. Select Tree, open Interaction, and choose onClick.
2. Add Set Page Context, named Set selected category.
3. Add selectedCategory = [[treeNode.name]] in Action Config.
4. Add Component API, named Reload product table.
5. Select the ProTable and its reloadTable function.
6. Keep Set Page Context before Component API.

In ProTable Query Context, map the category parameter to Page Context path selectedCategory. The backend can treat ALL as no category filter.

10.2 Dynamic Tree

Tree02 follows the same sequence:

1. Write [[treeNode.value]] to selectedNodeId and [[treeNode.data.category]] to selectedCategory.
2. Call the ProTable reloadTable function.

Map those values to the request parameters nodeId and category. Category nodes filter by category; the sample backend maps business nodes such as Operations or Support to a suitable product view by nodeId.

11. Component functions

Other interactions can call Tree through Component API:

Function	Behavior
reloadTree	Requests the root nodes again and retains a still-valid selection
expandAll	Expands every directory already loaded in the page
collapseAll	Collapses all directories

expandAll does not fetch every unloaded branch of a large lazy tree.

12. Java backend reference

The following contract matches Tree02 and targets Java 17 with Spring Boot 4. The sample uses in-memory data to keep the interaction visible; a production service can replace the storage while retaining the DTO and endpoint contract.

12.1 DTOs and request models

Return a stable id and an explicit leaf flag. A non-leaf node may return an empty children list until it is expanded.

@Getter
@Setter
@NoArgsConstructor
@AllArgsConstructor
public class NavigationTreeNodeDTO {
    private String id;
    private String label;
    private String parentId;
    private String category;
    private String count;
    private boolean leaf;
    private boolean disabled;
    private List<NavigationTreeNodeDTO> children = new ArrayList<>();
}

@Getter
@Setter
public class NavigationTreeNodeWriteRequest {
    private String parentId;
    private String label;
    private String category;
}

@Getter
@Setter
public class NavigationTreeReorderRequest {
    private String dragId;
    private String dropId;
    private String position;
}

12.2 Endpoints and page request context

Use	Method and path
Roots, children, and search	GET /spark/api/sample/navigation/tree/nodes
Add a child	POST /spark/api/sample/navigation/tree/nodes
Edit a node	PUT /spark/api/sample/navigation/tree/nodes/{nodeId}
Delete a node	DELETE /spark/api/sample/navigation/tree/nodes/{nodeId}
Persist a drag	POST /spark/api/sample/navigation/tree/reorder

Resolve the standard headers once in the controller. The same endpoint can then return deterministic preview data for Test and environment-specific data at runtime.

@GetMapping("/nodes")
public ApiResult<NavigationTreeDataResult> nodes(
        @RequestParam(required = false) String parentId,
        @RequestParam(required = false) String query,
        @RequestHeader(value = "Accept-Language", required = false) String language,
        @RequestHeader(value = SparkPageRequestHeaders.ENVIRONMENT,
                required = false) String environment,
        @RequestHeader(value = SparkPageRequestHeaders.RENDER_MODE,
                required = false) String renderMode) {
    Locale locale = SparkApiResultHelper.resolveLocale(language);
    SparkPageRequestContext context =
            SparkPageRequestHeaders.resolve(environment, renderMode);
    NavigationTreeDataResult result = new NavigationTreeDataResult(
            treeService.query(parentId, query, context), context);
    return SparkApiResultHelper.success(
            locale, result, "SPARK-SAMPLE-NAVIGATION-0002");
}

12.3 Lazy loading, search, and preview data

With no parentId, return root nodes. With a parentId, return direct children only. Search recursively and retain the ancestor path of every match.

public synchronized List<NavigationTreeNodeDTO> query(
        String parentId,
        String query,
        SparkPageRequestContext context) {
    Map<String, NodeRecord> source = isDevelopmentPreview(context)
            ? designPreviewNodes : nodes;
    String keyword = StringUtils.trimToNull(query);
    if (keyword != null) {
        return children(source, null).stream()
                .map(root -> filterTree(source, root, keyword))
                .filter(Objects::nonNull)
                .toList();
    }
    return children(source, StringUtils.trimToNull(parentId)).stream()
            .map(node -> toDto(source, node))
            .toList();
}

private boolean isDevelopmentPreview(SparkPageRequestContext context) {
    return context != null
            && context.getEnvironment() == SparkPageEnvironment.DEV
            && context.getRenderMode() == SparkPageRenderMode.DESIGN_PREVIEW;
}

Tree02 Test therefore reads stable designPreviewNodes. Runtime requests use the repository selected for DEV, TEST, or PROD. Do not infer this state from custom query parameters when the standard headers already carry it.

12.4 Create, update, and delete

Validate identifiers, parent nodes, labels, permissions, and delete rules on the server. This sample permits deletion only for leaf nodes. User-facing failures use LatticeRuntimeException(Message.code(...)); keep translated messages in server-side i18n resources instead of composing strings in the service.

public synchronized NavigationTreeNodeDTO delete(String nodeId) {
    String id = StringUtils.trimToNull(nodeId);
    NodeRecord node = nodes.get(id);
    if (node == null || !children(nodes, id).isEmpty()) {
        throw new LatticeRuntimeException(
                Message.code("SPARK-SAMPLE-NAVIGATION-0008"));
    }
    nodes.remove(id);
    return toDto(nodes, node);
}

12.5 Persist a drag

Never trust the submitted position directly. Verify that both nodes exist, reject self-drops and descendant cycles, derive the new parent, and update sibling order in one transaction. Add permission and optimistic-lock checks for production data.

String newParentId = StringUtils.equals(position, "INSIDE")
        ? dropId : dropped.parentId;
if (!List.of("BEFORE", "INSIDE", "AFTER").contains(position)
        || isDescendant(dropId, dragId)) {
    throw new LatticeRuntimeException(
            Message.code("SPARK-SAMPLE-NAVIGATION-0006"));
}
// Rewrite the old and new sibling order in the same transaction.

Return a non-success result when persistence fails so Tree can roll back the visual move.

12.6 Filter the content component

The ProTable request adds nodeId to the regular product query. Category nodes continue to use category; business nodes can be mapped on the server.

private void applyBusinessNodeFilter(NavigationProductQueryRequest query) {
    String nodeId = StringUtils.lowerCase(
            StringUtils.trimToEmpty(query.getNodeId()), Locale.ROOT);
    switch (nodeId) {
        case "operations" -> query.setStatus("DRAFT");
        case "support" -> query.setStatus("DISCONTINUED");
        case "enterprise" -> query.setMinPrice(BigDecimal.valueOf(1000));
        default -> {
            // Category nodes continue to use the category returned by Tree.
        }
    }
}

The product controller should resolve the same standard page request headers before calling the service, so preview and runtime queries follow the same environment contract.

13. Validate and troubleshoot

Validate one layer at a time: data loading, selection, node commands, and finally drag persistence.

1. Click Test and confirm two root nodes are parsed.
2. Expand Product Catalog and confirm only its direct children are requested.
3. Search for tier 2 and confirm ancestor paths remain visible.
4. Select several category and business nodes and confirm the right-side list changes.
5. Test More and right-click commands without accidentally firing Tree onClick.
6. Complete View, Edit, Add Child, and Delete, then confirm Tree reloads.
7. Move Accessories before Computing, refresh, and confirm the order persists.
8. Simulate a failed reorder request and confirm the visual move rolls back.

Symptom	Check first
Test request fails	URL, method, connection, authentication, and CORS
HTTP 200 but zero nodes	Whether Response List Path points to an array
Counts appear but titles do not	Title Field and Value Field names
A directory has no expand control	Whether Leaf Field incorrectly returns true
Expanding does not load children	Child Nodes URL, Parent Parameter, and parent Value
Search returns isolated leaves	Whether the backend includes ancestor paths
Different nodes show the same list	Page Context order and ProTable Query Context paths
Menu items are absent	Trigger, Hide This Action, and current node data
Order resets after refresh	onDrop parameters and backend persistence
A failed save does not roll back	Whether Send Request returns a failure/interruption result
